Lathe & Drilling Machine
Precision Lathe & Drilling Machine Solutions
BriidgeWithTrade provides comprehensive lathe and drilling machine solutions for precision metalworking operations. Our machines combine traditional machining excellence with modern technology, delivering accurate turning, boring, threading, and drilling operations for diverse industrial applications. With extensive expertise in precision component manufacturing, we offer machines that excel in both production environments and precision job shops requiring tight tolerances and superior surface finishes.
Our comprehensive range includes conventional lathes for general-purpose turning operations, CNC turning centers for complex profiles and high-volume production, radial drilling machines for large workpiece accommodation, column drilling machines for production drilling, and specialized multi-spindle systems for high-speed component production. Each machine is designed for durability, precision, and ease of operation, making them ideal for manufacturers requiring reliable equipment capable of producing components meeting demanding quality standards and tight tolerances. From small precision components for medical devices to large industrial shafts and agricultural equipment parts, our machines deliver exceptional results.
Comprehensive Lathe & Drilling Machine Technology
Lathe and drilling machines represent the foundational metalworking equipment, enabling cylindrical turning operations, internal boring, precise hole drilling, and thread generation with exceptional accuracy. Conventional lathes provide manual control and versatility for job shop operations requiring operator skill and adaptation to varying part designs. CNC turning centers automate these operations, enabling consistent reproduction of complex profiles, automatic tool changes, and rapid throughput for production environments. Drilling machines range from simple vertical spindles to sophisticated radial systems accommodating large irregular workpieces with precision positioning.
Modern spindle technology delivers precise rotational speeds and exceptional runout accuracy (typically 0.005mm TIR), enabling fine surface finishes and accurate dimensional results. Precision ground slideways with automatic lubrication systems maintain tight tolerances over extended service life. Variable speed control enables optimization of cutting speeds for different materials and operations. Integrated coolant systems provide efficient chip evacuation, extended tool life, and superior surface finish. These features combine to deliver precision and reliability in machine tool performance.
Threading operations, whether by single-point turning or multi-point taps, require precise control of spindle speed, feed rate, and positioning. Our machines provide the accuracy necessary for producing metric, inch, and specialty thread pitches with proper helix angles and thread forms. Taper turning attachments enable production of conical surfaces for precise fits and functional requirements. Turret tool posts and quick-change holders minimize setup time between operations, improving productivity and reducing labor costs.
Key Features & Capabilities
- High-precision spindle systems (runout 0.005mm)
- Variable speed control (50-3000 RPM)
- Heavy-duty bed construction
- Automatic tool changers (CNC models)
- Digital readout systems (DRO)
- Precision thread generation capability
- High-speed cutting capabilities
- Threading capabilities (metric/inch/special)
- Taper turning attachments available
- Automatic coolant systems
- Quick-change tool posts
- Precision ground slideways
- Large workpiece accommodation
- Multi-spindle production options
Our Comprehensive Machine Range
We offer specialized machines optimized for different metalworking applications:
Conventional Lathes
Manual lathes for general-purpose turning, facing, threading, and taper cutting operations. Perfect for job shops requiring operator flexibility and adaptation to varying part designs. Ideal for prototype development and small batch production.
CNC Turning Centers
Computer-controlled precision turning with automatic tool changes, complex profiling, and multi-axis capability. Enables consistent reproduction of complex designs across high-volume production runs. Supports 2-5 axes of simultaneous motion.
Radial Drilling Machines
Versatile drilling machines for large and irregular workpieces with radial arm positioning. The radial arm moves horizontally and vertically while the spindle head travels along the arm, enabling precise hole positioning on large parts. Perfect for heavy industrial components.
Column Drill Press
Heavy-duty drilling machines for production drilling, reaming, and tapping operations. Available in manual and automatic versions. Ideal for repetitive drilling patterns and high-volume component production requiring consistent hole positioning.
Multi-Spindle Drilling
High-speed production drilling machines with multiple spindles enabling simultaneous hole drilling on multiple locations. Dramatically increases throughput for components requiring multiple identical holes or drilling patterns.
Turret Lathes
Semi-automatic lathes with indexable tool turrets enabling rapid tool changeover. Combines manual operation flexibility with productivity enhancement for moderate production volumes and part complexity.
Machining Operations & Capabilities
Our lathe and drilling machines perform a comprehensive range of precision operations that form the foundation of precision component manufacturing:
Precision Turning
Cylindrical turning, facing, grooving, parting, and profile turning operations with tolerances to ±0.01mm
Thread Generation
Internal and external threading in metric, inch, and specialty pitches with proper helix and thread form
Precision Drilling
Precision hole drilling, reaming, and boring operations for accurate hole positioning and quality
Boring & Internal Finishing
Internal bore finishing, counterboring, and internal threading with superior surface quality
Taper Operations
Taper turning and boring for precise conical surfaces and precision fits
Knurling & Surface Treatment
Knurl formation for improved grip and knurled surface generation
Technical Specifications & Performance Parameters
| Machine Type | Specification | Range / Capacity | Technical Notes |
|---|---|---|---|
| Lathe Machine | Swing over bed | 200mm to 1000mm | Determines max workpiece diameter |
| Lathe Machine | Bed length | 6Ft to 10Ft (1800mm to 3000mm) | Standard industrial sizes available |
| CNC Turning Center | Spindle speed | 50-5000 RPM | Variable speed for different materials |
| CNC Turning Center | Repeatability | ±0.01mm | Consistent results across production runs |
| Radial Drill | Drilling capacity | 25mm to 100mm diameter | Hole size capability |
| Radial Drill | Arm reach | 1000mm to 2500mm | Distance from column center to spindle |
| Column Drill | Table size | 400x400mm to 1200x1200mm | Workpiece accommodation capability |
| Column Drill | Spindle speed | 50-3000 RPM | Variable for material optimization |
| Threading | Pitch range | Metric, inch, special pitches | 0.5mm to 10mm standard, custom available |
| Surface Finish | Ra (roughness) | 0.4 to 3.2 micrometers | Depends on operation and tool quality |
Quality Assurance & Precision Verification
We maintain strict quality standards throughout lathe and drilling operations:
- Spindle Runout Verification: Regular runout checks (typically 0.005mm TIR) ensure spindle precision and consistent surface quality
- Dimensional Inspection: First-part inspection and periodic dimensional checks using micrometers, gauges, and coordinate measuring equipment
- Thread Quality Verification: Thread pitch diameter, major diameter, and minor diameter checked against functional requirements
- Surface Finish Inspection: Roughness measurement (Ra values) ensures surface quality meets specifications
- Tool Life Monitoring: Tool wear measurement and replacement scheduling prevents quality degradation from dull tools
- Coolant System Maintenance: Regular coolant monitoring and maintenance ensures optimal chip evacuation and tool life
- Machine Calibration: Periodic spindle and positioning system calibration maintains accuracy within specification
- Material Traceability: Complete documentation of material batch, heat treatment, and processing parameters

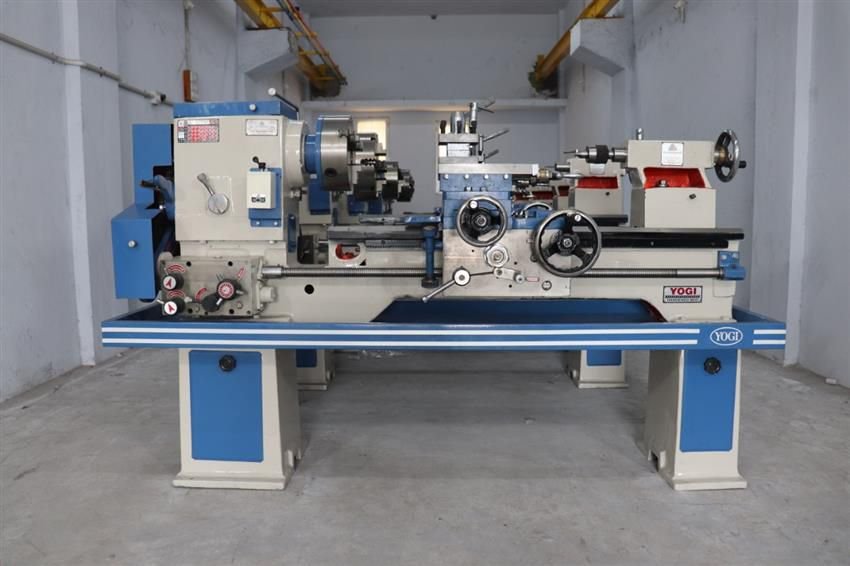

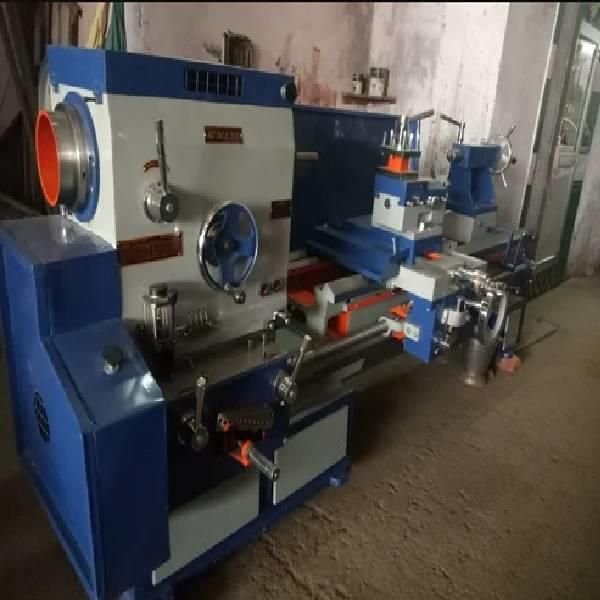

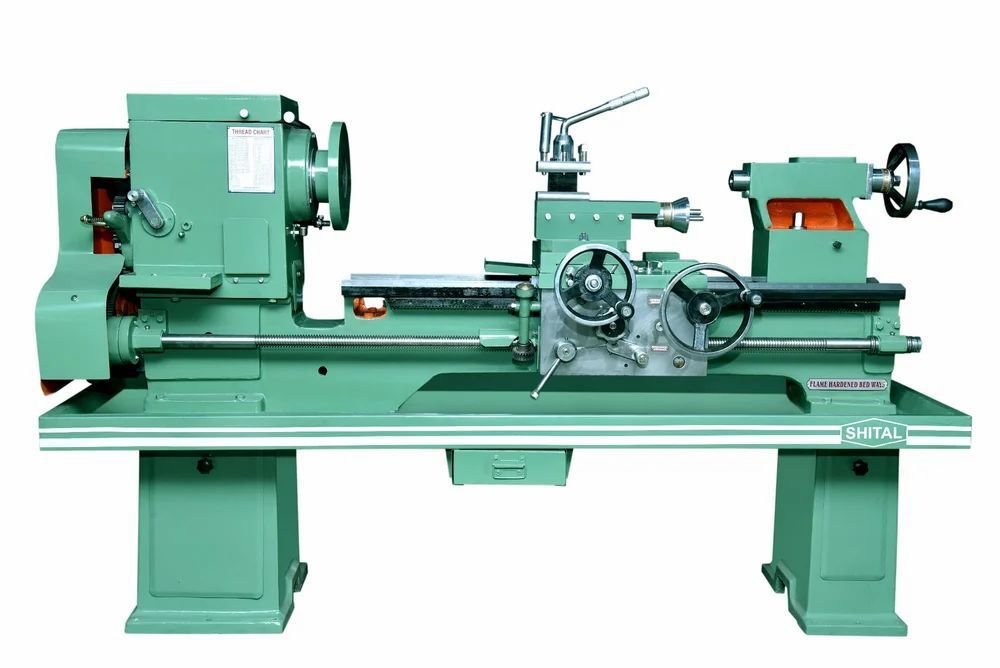

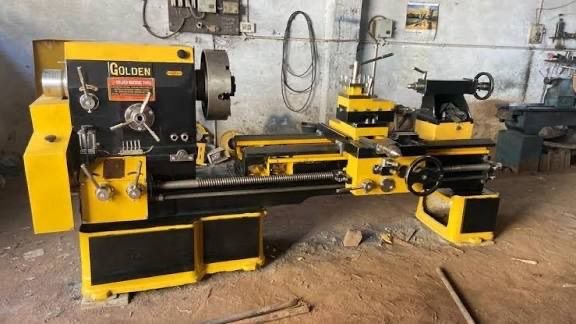

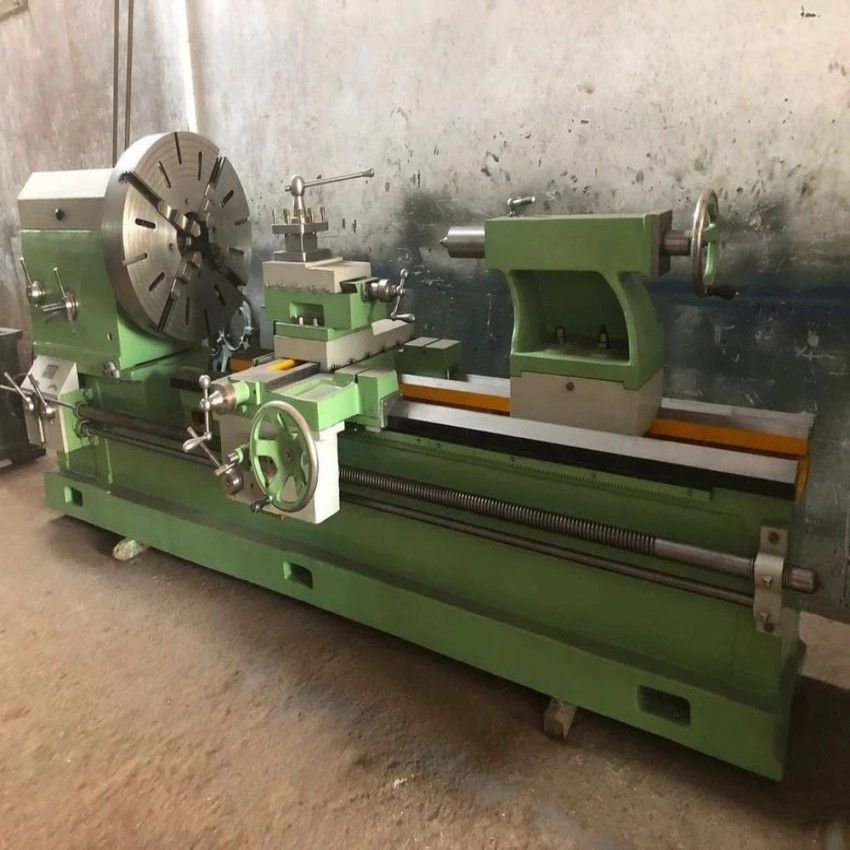

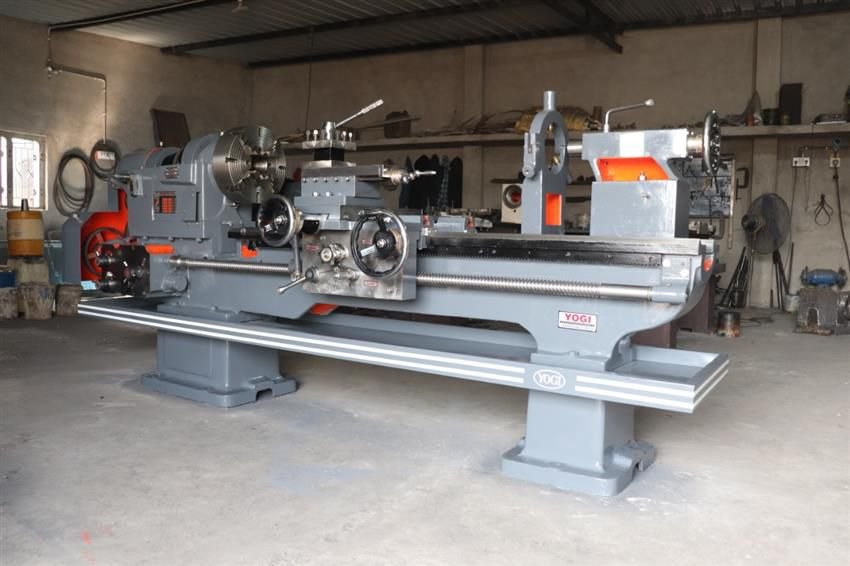

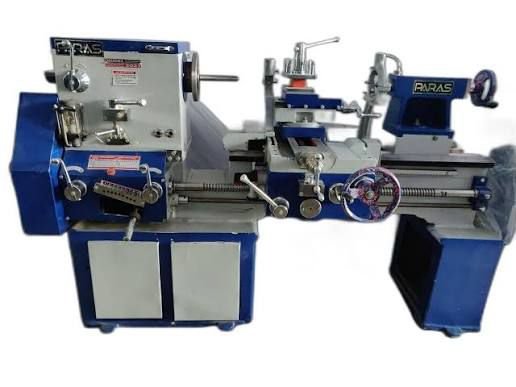

Our Lathe Machine Models (6Ft to 10Ft)
We offer a wide range of high-quality lathe machines with bed lengths ranging from 6Ft to 10Ft, designed for precision and durability in various industrial applications.
