CNC & VMC Machining
High-Precision CNC & VMC Machining Solutions
At BriidgeWithTrade, we specialize in advanced CNC (Computer Numerical Control) and VMC (Vertical Machining Center) machining services that deliver unparalleled precision, efficiency, and reliability. Our state-of-the-art facilities are equipped with cutting-edge technology, enabling us to produce complex industrial components with exceptional accuracy and surface quality. Whether you require prototype development, small-batch production, or high-volume manufacturing, our experienced team ensures every component meets your exact specifications and quality standards.
Our CNC and VMC machines feature multi-axis capabilities (3, 4, and 5-axis), high-speed spindles, and advanced control systems that enable us to manufacture components from a wide variety of materials including ferrous metals (steel, iron), non-ferrous metals (aluminum, brass, copper, titanium), engineering plastics, and composite materials. We maintain precision tolerances of ±0.01mm or better, making us an ideal partner for industries demanding stringent quality requirements.
CNC Machining - Comprehensive Overview
Computer Numerical Control (CNC) machining represents the pinnacle of precision manufacturing technology. Our CNC machines automatically execute programmed instructions to cut, shape, and finish workpieces with incredible precision. This process eliminates human error, ensures consistency across batches, and dramatically improves production efficiency.
CNC Machining Capabilities:
- ✓ 3-Axis CNC Machines - Perfect for basic to intermediate component machining
- ✓ 4-Axis CNC Machines - Enables rotational capability for complex geometries
- ✓ 5-Axis CNC Machines - Advanced capability for intricate, multi-directional features
- ✓ Horizontal Boring Mills - For large, heavy components requiring precision boring
- ✓ Precision Grinding Operations - For achieving ultra-fine surface finishes
- ✓ Thread Milling and Cutting - Precision thread generation for assemblies
Our CNC programming team utilizes CAD/CAM software to convert your designs into optimized machine instructions. We can handle intricate patterns, deep cavities, multiple radii, and complex undercuts that would be impossible with conventional machining.

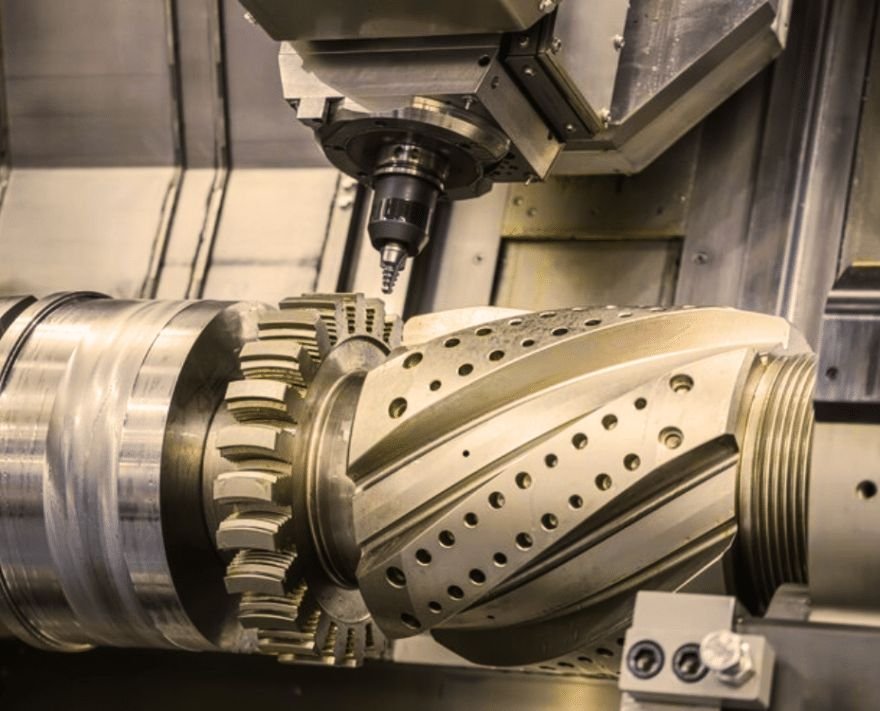

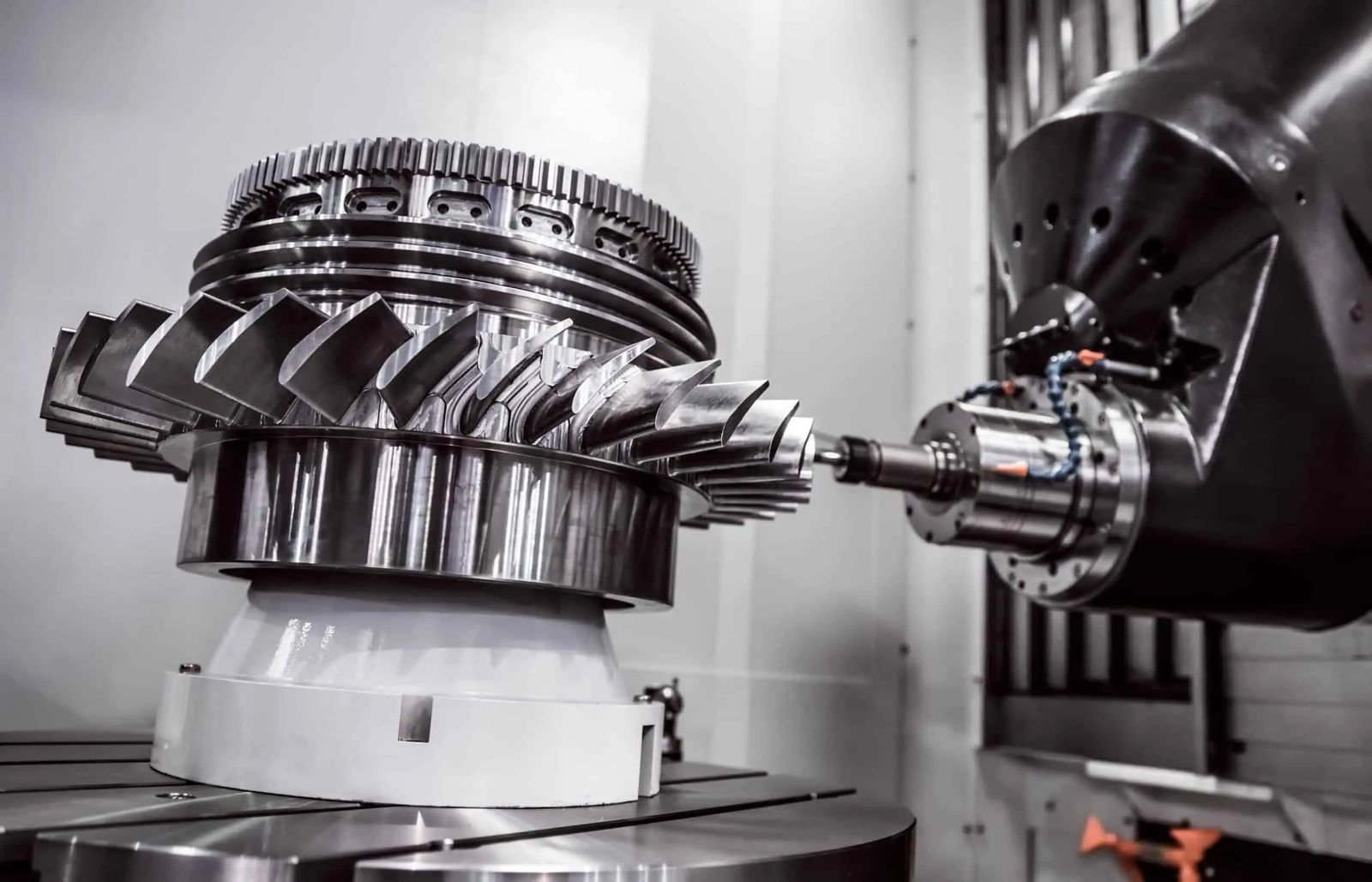

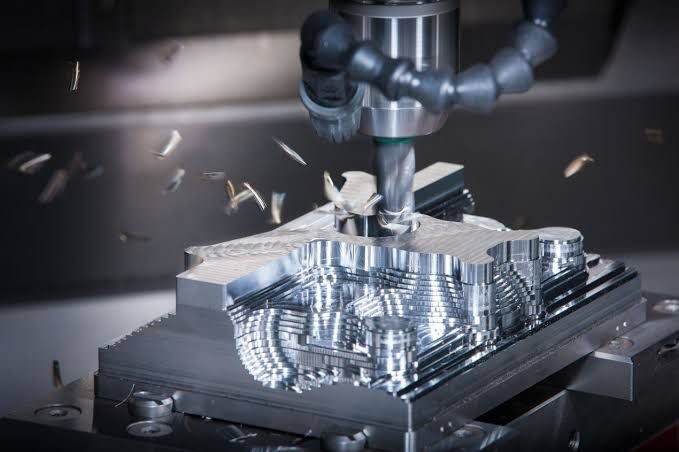

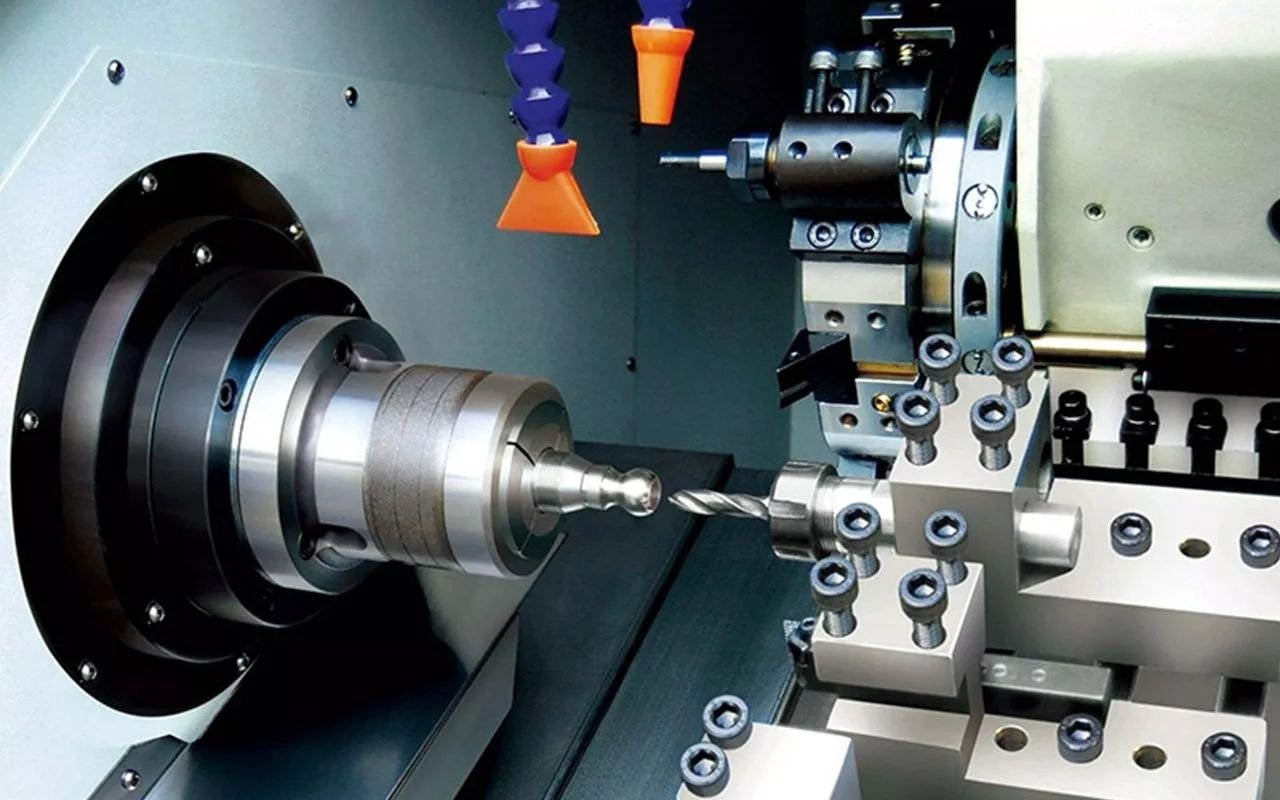

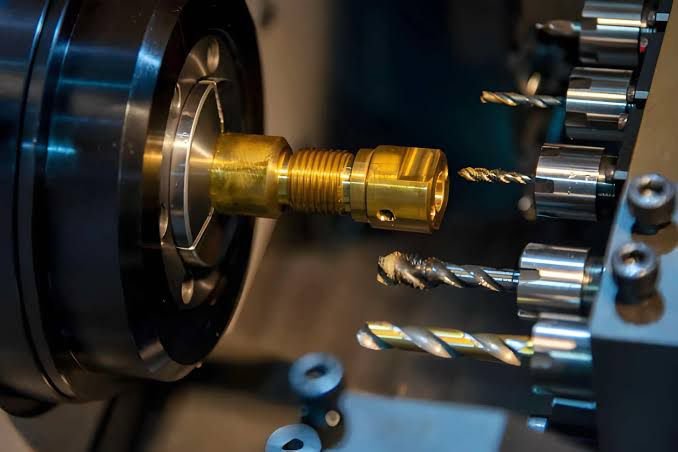

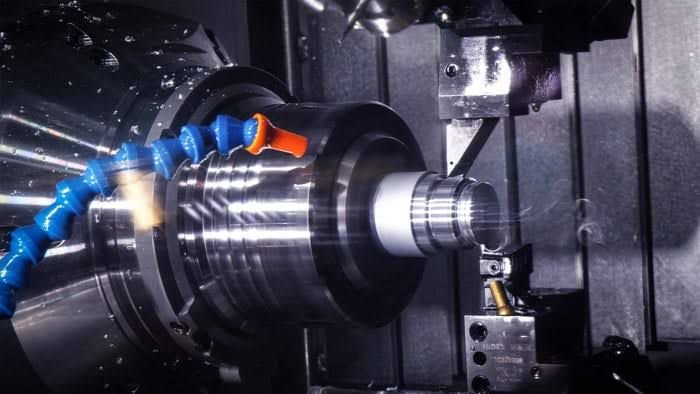

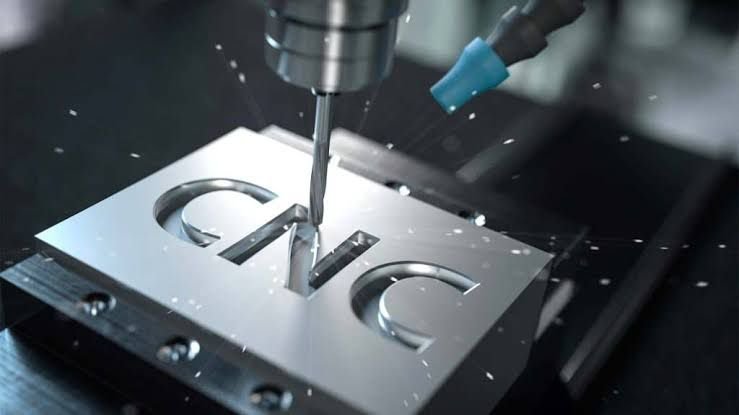

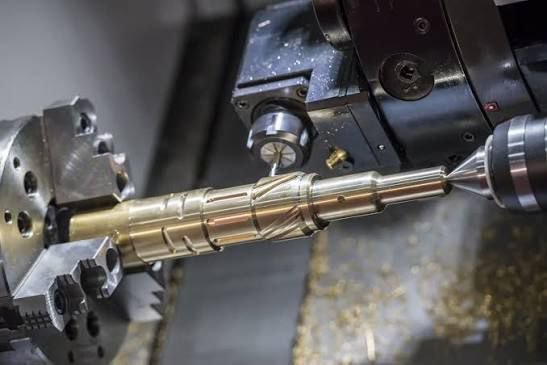

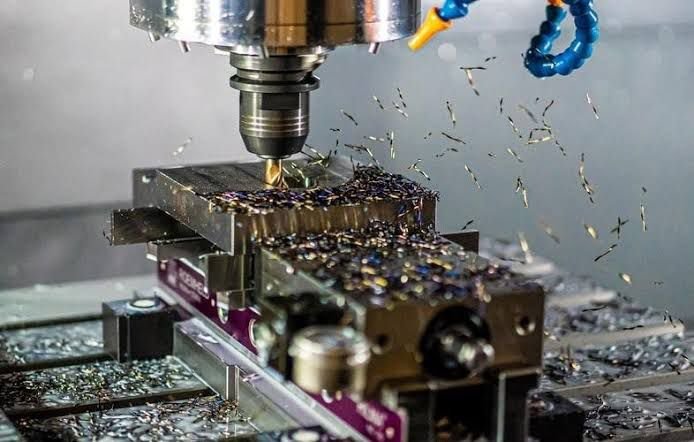

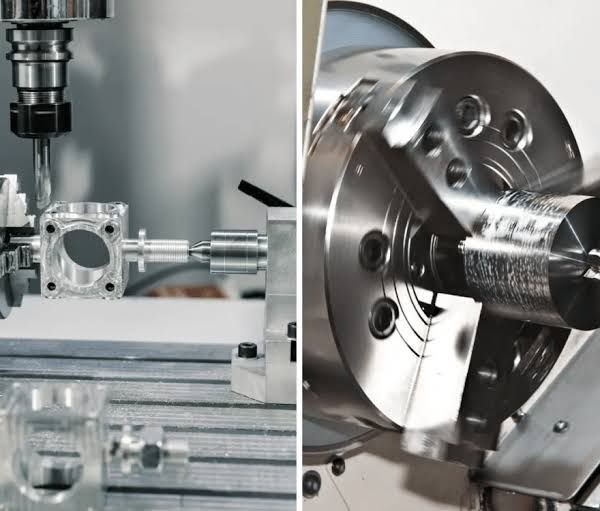

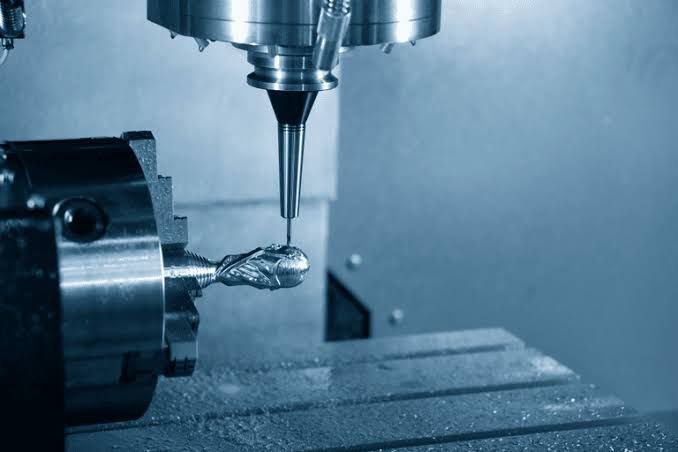

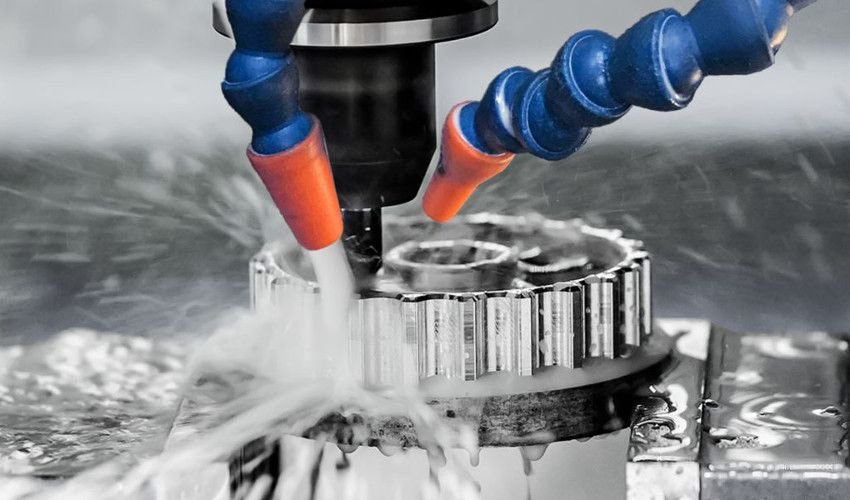

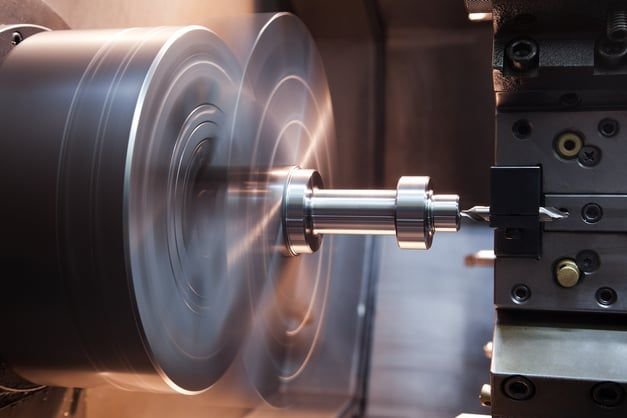

CNC Tools Collection

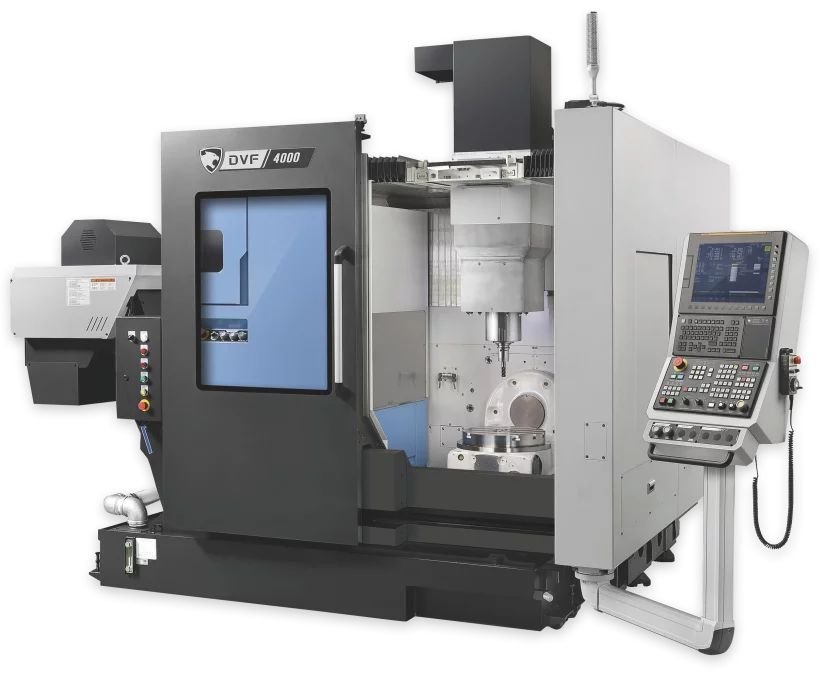

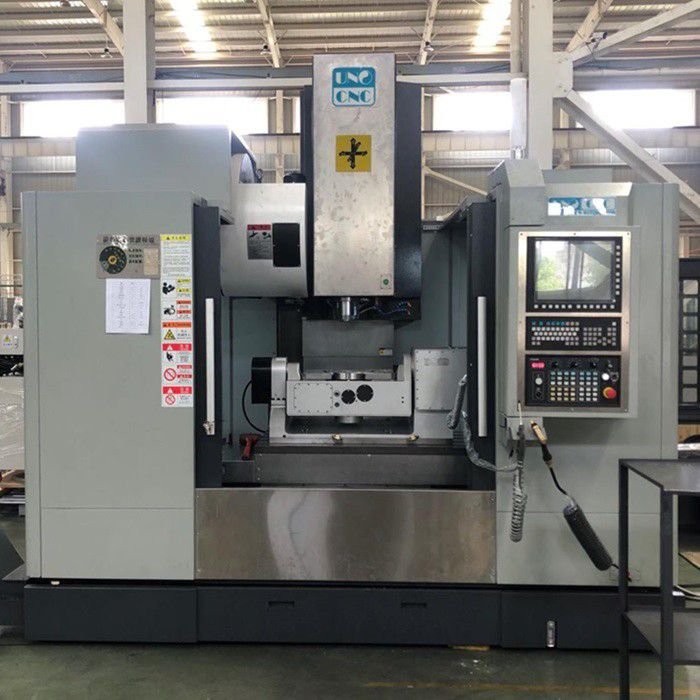

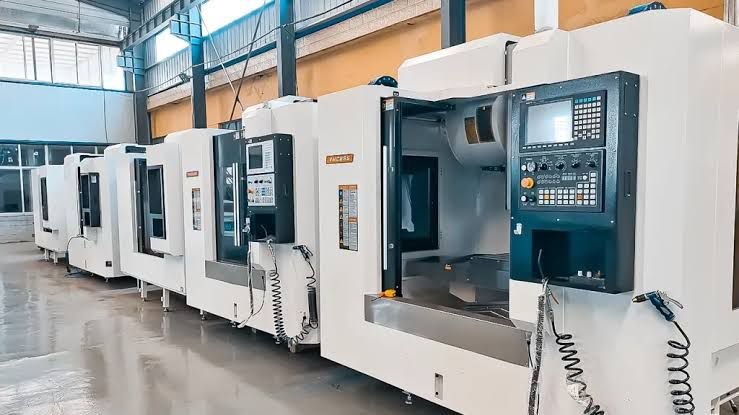

CNC Machines
Vertical Machining Center (VMC) - Specialized Solutions
Vertical Machining Centers (VMC) are specifically designed for applications requiring high spindle speeds, rapid tool changes, and exceptional precision. The vertical spindle orientation makes VMCs ideal for components with rectangular or complex horizontal profiles. Our VMC arsenal includes both manual and fully automated systems with live tooling capabilities.
VMC Advantages and Features:
- ✓ High-Speed Spindles (up to 15,000+ RPM) - Optimal for small diameter cutting
- ✓ Automatic Tool Changer - Reduces setup time and improves efficiency
- ✓ Large Work Table Capacity - Accommodates various component sizes
- ✓ Live Tooling Options - Enables simultaneous multi-directional operations
- ✓ Precision Position Control - DRO or CNC positioning for exact feature location
- ✓ Rapid Feed Rates - Speeds up non-cutting moves for better efficiency

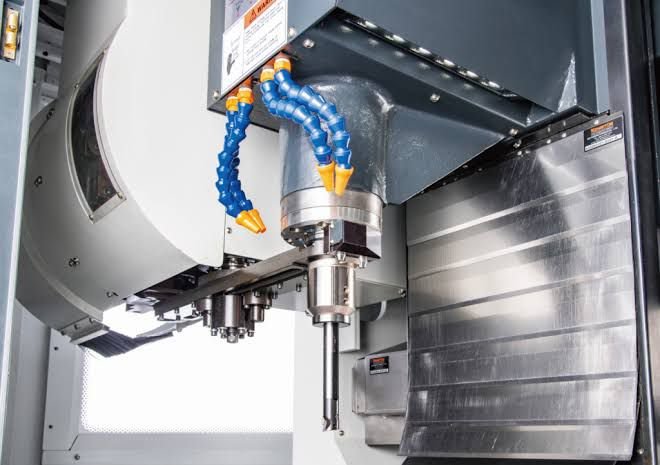

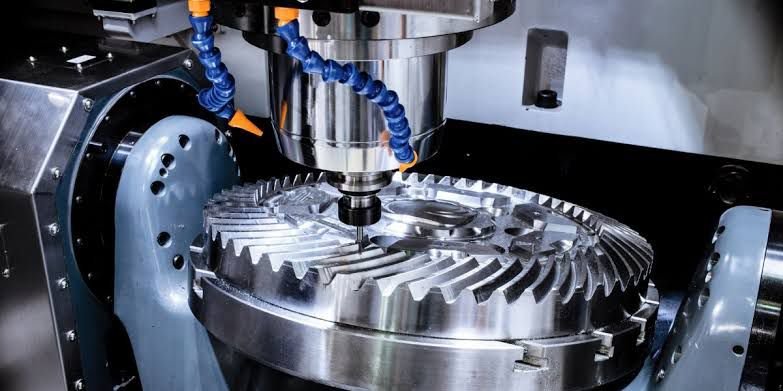

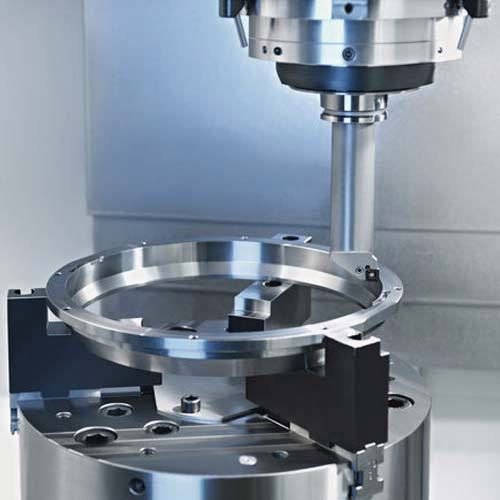

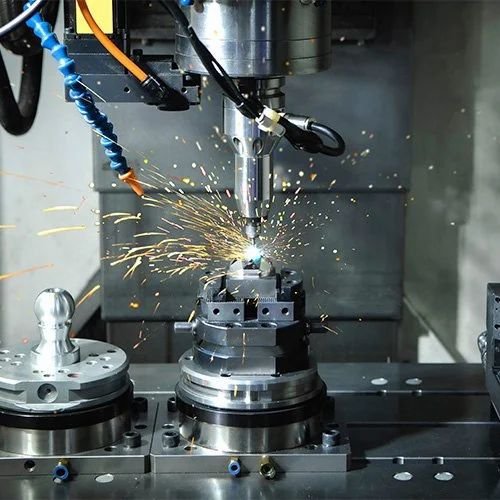

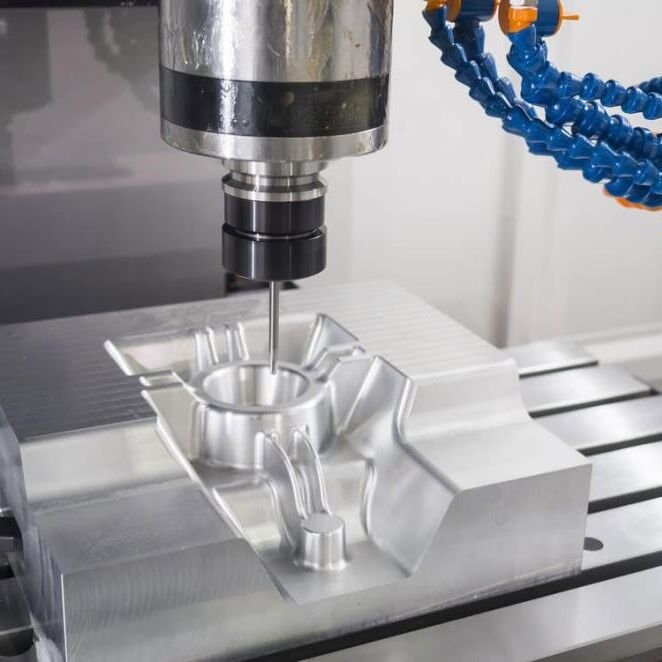

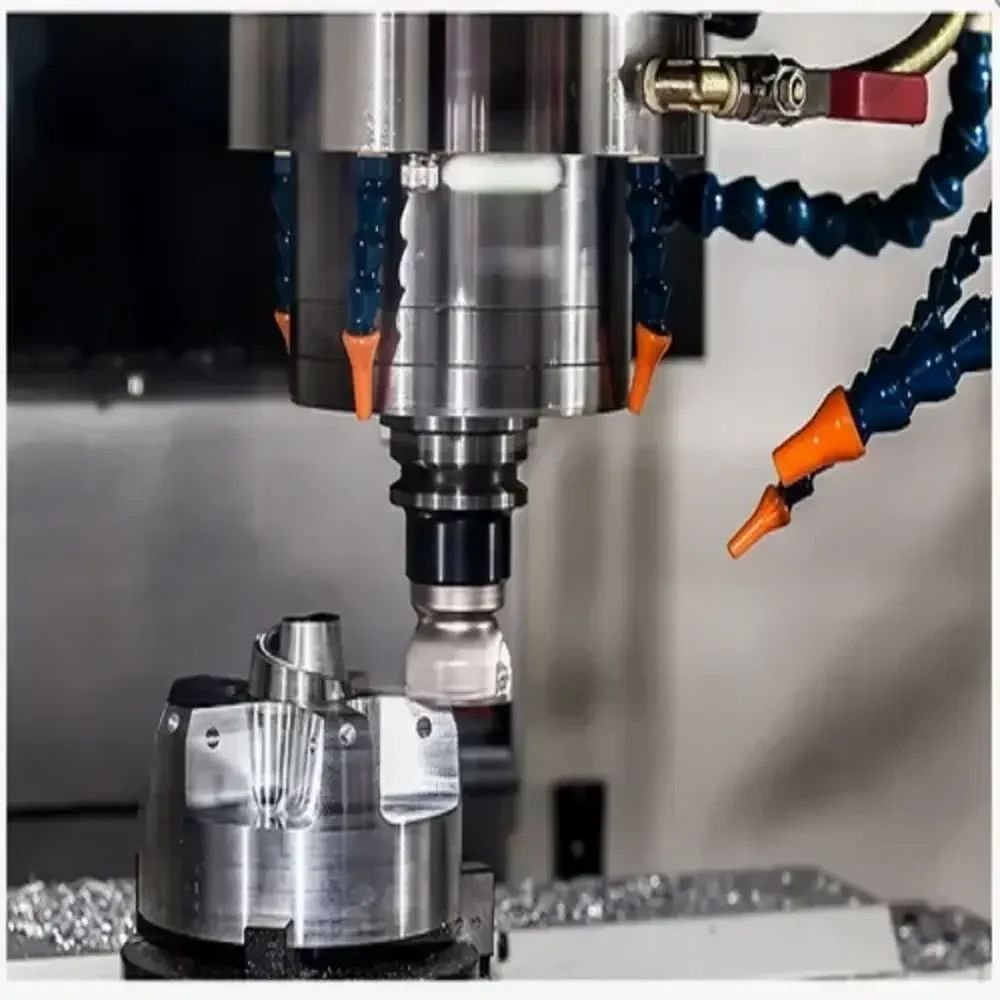

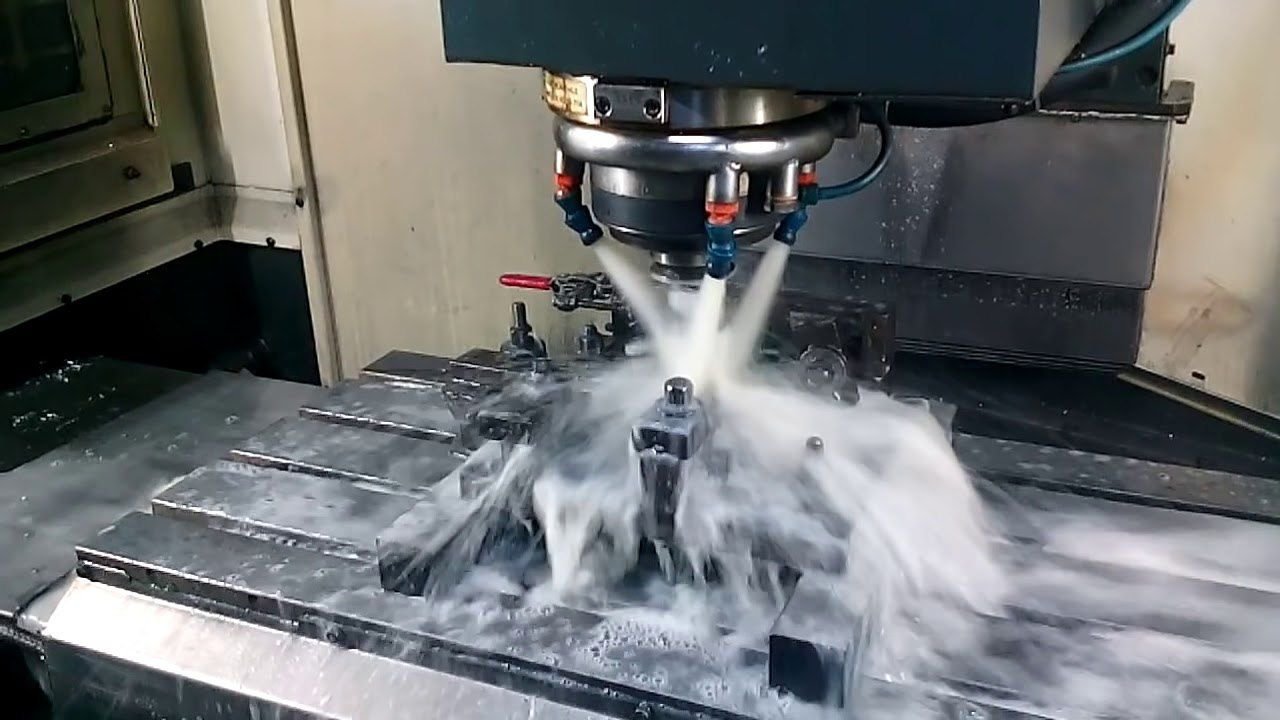

VMC Tools Collection

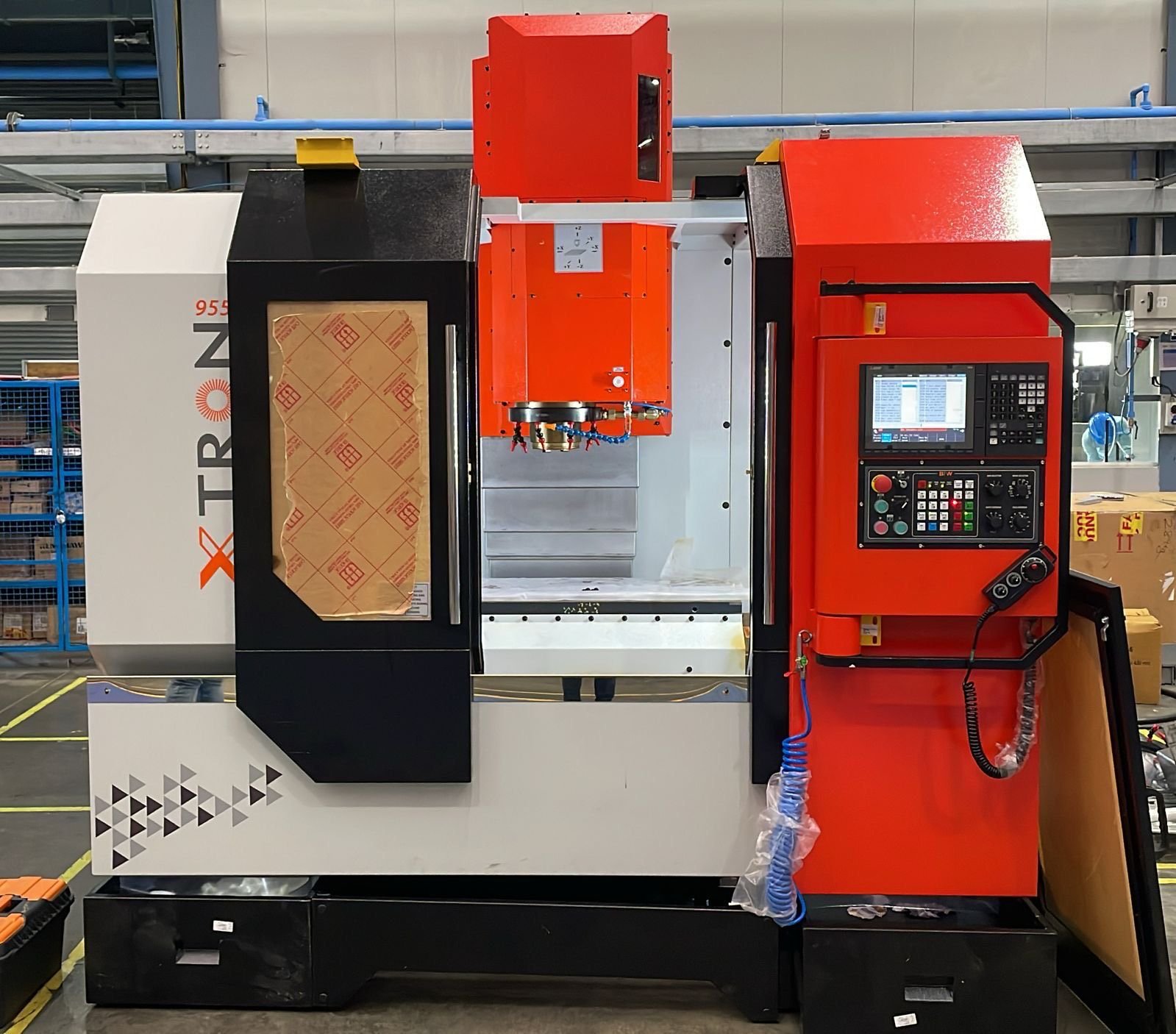

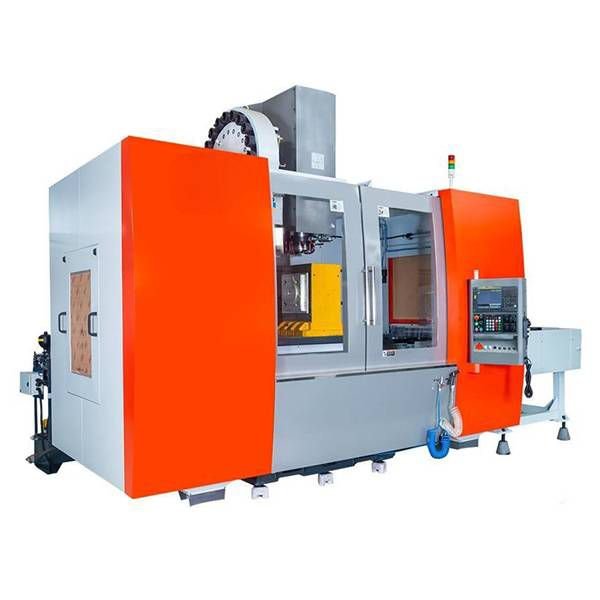

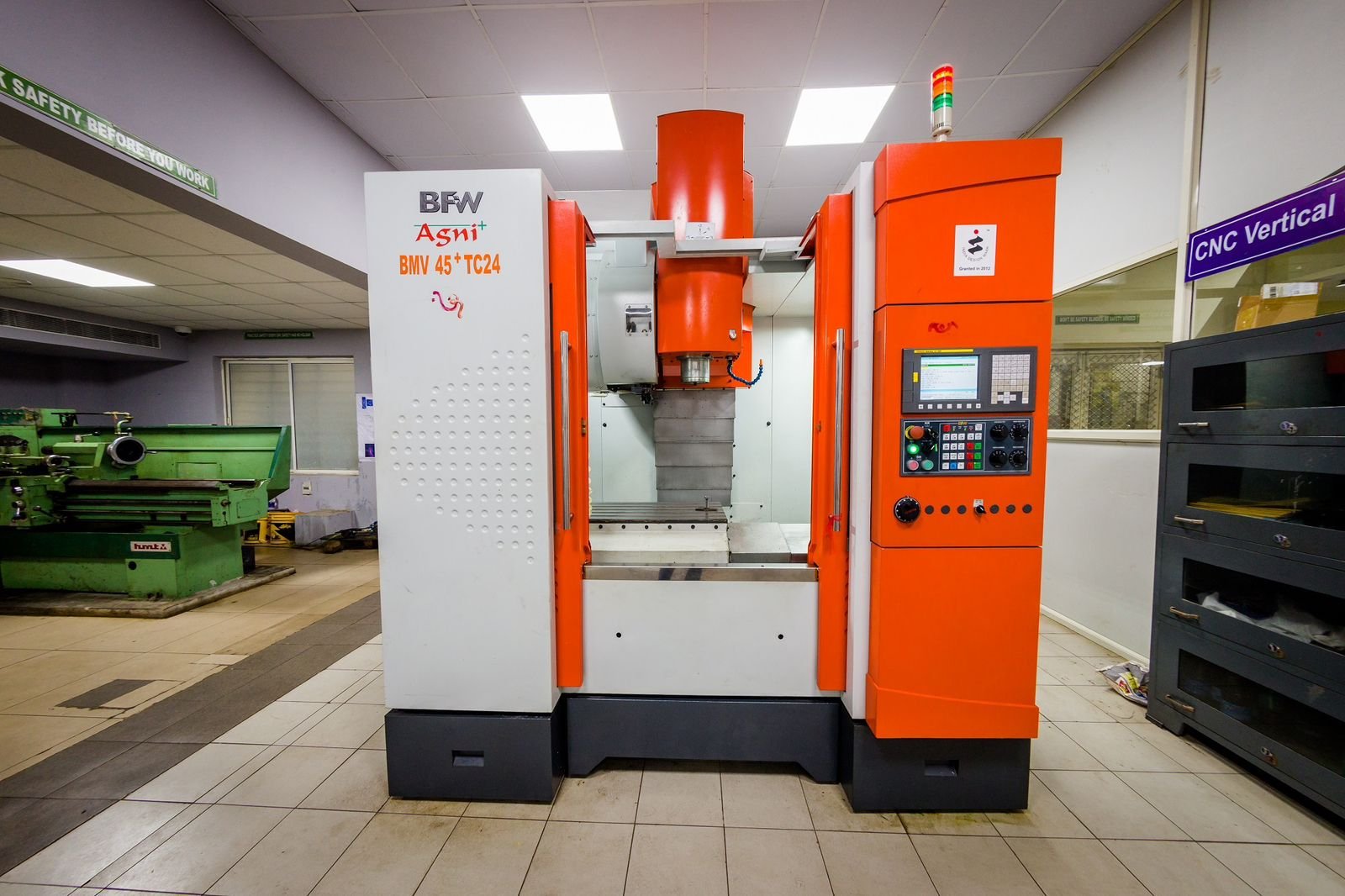

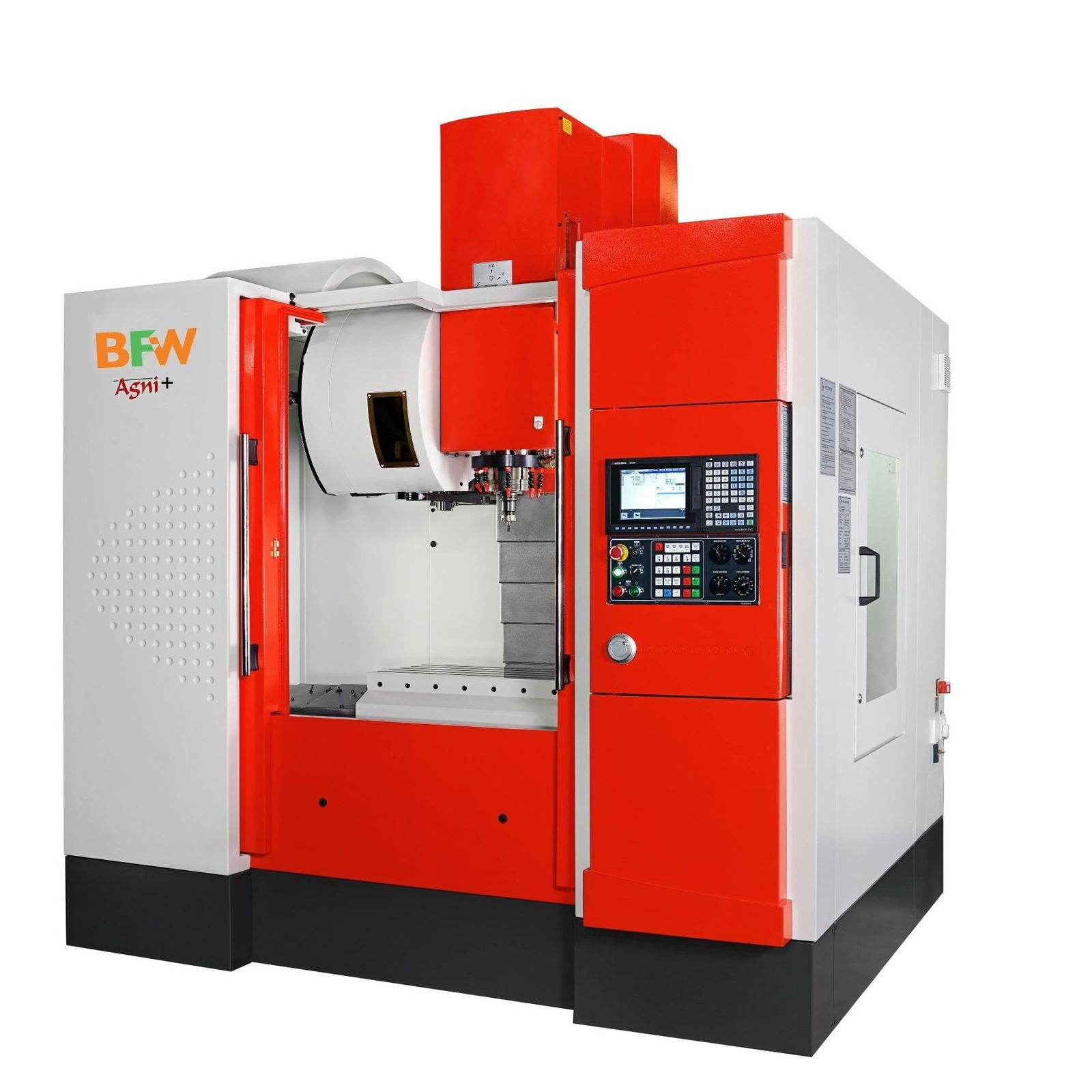

VMC Machines
Technical Specifications & Capabilities
Machining Range
- • Precision tolerance: ±0.01mm to ±0.001mm
- • Surface roughness: Ra 0.8µm to Ra 3.2µm
- • Component size: Up to 2000mm x 1500mm x 1200mm
- • Weight capacity: Up to 2000 kg per component
- • Spindle speed: 50 RPM to 15,000+ RPM
- • Feed rates: Up to 25 m/min cutting speed
Material Processing
- • Ferrous metals: Steel, stainless steel, cast iron
- • Non-ferrous: Aluminum, brass, copper, titanium, magnesium
- • Plastics & Composites: Nylon, Delrin, PTFE, carbon fiber
- • Special alloys: Nickel alloys, superalloys, exotic materials
- • Difficult-to-machine materials: Hardened steel, composites
- • Production runs: Prototype to 100,000+ piece volumes
Quality Assurance & Inspection
Every component manufactured undergoes rigorous quality control measures to ensure compliance with your specifications:
Dimensional Verification
CMM (Coordinate Measuring Machine) inspection, precision gauges, and digital calipers for exact dimensional verification
Surface Quality
Surface roughness measurement, visual inspection, and finish evaluation to industry standards
Material Testing
Hardness testing, material certification, and traceability documentation for critical applications
Industry Applications & Solutions
Our CNC & VMC machining services serve diverse industrial sectors with customized solutions tailored to specific requirements:
Automotive
Engine blocks, cylinder heads, gearbox cases, transmission components, suspension parts, and precision assemblies
Aerospace & Defense
Aircraft engine components, fuselage fittings, landing gear parts, avionics housings, and defense equipment
Medical & Surgical
Surgical instruments, orthopedic implants, diagnostic device components, and healthcare equipment parts
Industrial & Machinery
Pump components, hydraulic fittings, valve bodies, machine tool parts, and industrial equipment assemblies
Consumer Electronics
Precision housings, connectors, heat sinks, and custom enclosures for electronic devices
Oil & Energy
Drilling components, pressure housings, seal assemblies, and equipment for energy sector applications
Why Choose Our CNC & VMC Services?
Our CNC/VMC Manufacturing Process
- 1. Design Review & Analysis: We analyze your CAD drawings, optimizing them for manufacturing efficiency and cost-effectiveness.
- 2. CAM Programming: Our programmers develop optimized CNC/CAM programs using advanced software, simulating operations for precision verification.
- 3. Setup & Tooling: We select appropriate cutting tools, set up machines with precision, and prepare all fixtures and workholding devices.
- 4. Trial Run & Validation: Initial components are produced and inspected to ensure specification compliance before full production run.
- 5. Production Machining: Components are manufactured with continuous monitoring and periodic quality inspections throughout the run.
- 6. Final Inspection & Quality: Completed components undergo final dimensional and surface inspection, packaging, and preparation for delivery.
