Automatic Hydraulic Press Machine
Heavy-Duty Automatic Hydraulic Press Solutions
BriidgeWithTrade provides powerful automatic hydraulic press machines engineered for the most demanding industrial applications. Our hydraulic presses deliver exceptional force, precision, and reliability for metal forming, punching, bending, molding, and assembly operations across automotive, manufacturing, pharmaceutical, and consumer products sectors. With over two decades of hydraulic system expertise, we design and manufacture custom press solutions that consistently exceed industry standards for performance and durability.
Our comprehensive range of hydraulic press machines includes C-frame presses for space-constrained environments, H-frame presses for maximum stability, four-pillar precision presses for demanding tolerances, and fully customized systems for specialized applications. Each machine is engineered with robust construction, precision hydraulic controls, advanced servo systems, and comprehensive safety features to ensure optimal performance and operator safety in high-pressure applications. Our presses deliver tonnage ranges from 5 tons to 5000 tons, capable of handling applications from delicate assembly to heavy-duty forging operations.
Comprehensive Hydraulic Press Technology Overview
Hydraulic press machines utilize the principles of Pascal's Law to convert relatively small input forces into massive output forces through pressurized hydraulic fluid. This mechanical advantage allows hydraulic systems to generate pressing forces that would be impractical or impossible with mechanical systems, while providing smooth, controllable force delivery. Modern servo-hydraulic systems incorporate closed-loop feedback controls that maintain precise pressure, velocity, and force profiles throughout the pressing cycle, enabling operations that require exacting tolerances and consistent results.
Our hydraulic systems employ proportional control valves that respond to electronic signals to regulate flow and pressure with exceptional precision. Real-time feedback from load cells and pressure transducers enables automatic adjustment of system parameters to maintain target conditions despite material variations or environmental changes. This level of control ensures that each cycle produces identical results, meeting stringent quality requirements for high-volume production environments.
The hydraulic fluid circulating through our systems is carefully selected to withstand the demands of continuous operation at high pressures and temperatures. Premium grade hydraulic oils with excellent oxidation stability, thermal resistance, and anti-wear properties ensure extended service intervals and maximum reliability. Integrated filtration systems maintain fluid cleanliness to preserve component longevity and maintain tight tolerances necessary for precise operations.
Key Features & Capabilities
- Tonnage range: 5 to 5000 tons
- Precision force control systems (±1% accuracy)
- PLC-based automation with touchscreen interface
- Servo-hydraulic technology for smooth operation
- Multi-station capability for complex operations
- Variable speed control (approach/work/return)
- Integrated pressure monitoring systems
- Comprehensive safety interlocks & guards
- Emergency stop systems (dual-channel safety)
- Heavy-duty welded frame construction
- Energy-efficient hydraulic systems
- Custom stroke lengths available
- Optional vibration dampening
- Automated lubrication systems
Hydraulic Press Machine Types & Configurations
We offer a complete range of hydraulic press designs, each optimized for specific applications and operating environments:
C-Frame Press
Compact, open-sided design ideal for punching, stamping, and assembly operations with easy access from three sides. Maximum flexibility for tool changeover and part loading.
H-Frame Press
Robust four-column design providing maximum structural rigidity and stability for heavy-duty applications requiring high tonnage and uniform load distribution.

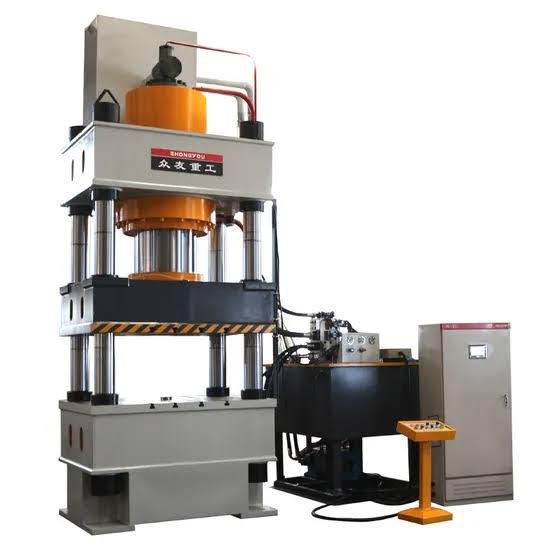

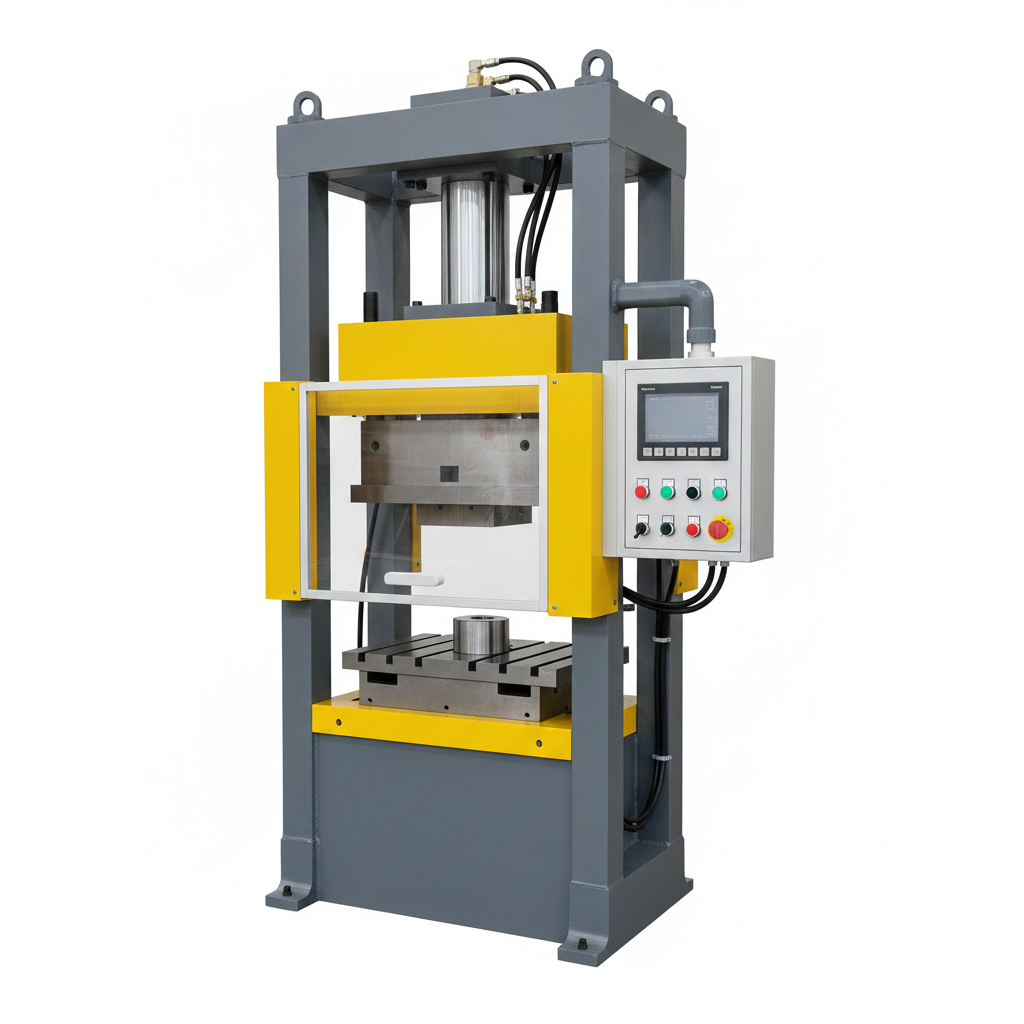

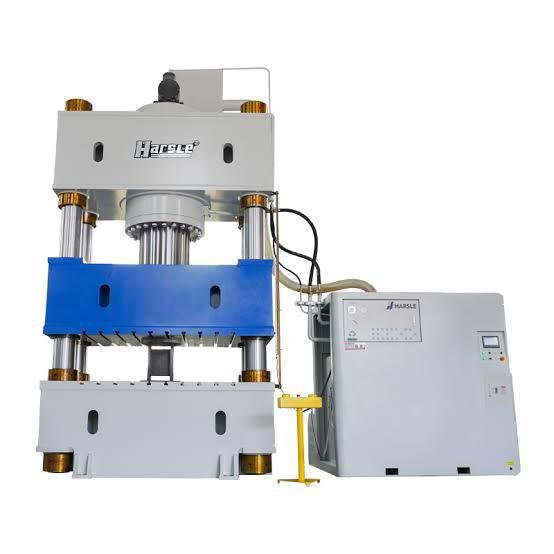

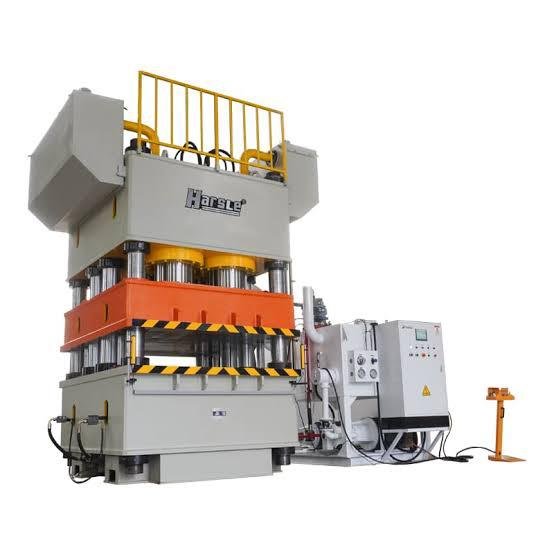

Four-Pillar Precision Press
Precision-engineered design with accurately guided pillars ensuring perfect parallelism and uniform pressure distribution. Ideal for applications requiring tight tolerances and consistent results.
Custom Press Systems
Fully customized hydraulic press solutions engineered specifically for unique manufacturing requirements, including special geometries, multiple work stations, or integrated automation.
Industrial Applications & Manufacturing Functions
Our hydraulic press machines serve critical roles in diverse industrial processes, enabling manufacturing operations that require controlled, repeatable application of massive forces:
Metal Forming
Deep drawing, bending, and shaping of metal sheets with precise force control ensuring consistent part geometry and material properties
Forging Operations
Hot and cold forging for automotive parts, industrial components, and precision bearings with controlled strain rates and material flow
Assembly & Joining
Press-fit assembly, riveting, and component joining operations with precise force profiles ensuring proper assembly without damage
Powder Compaction
Metal powder and ceramic powder compaction for manufacturing structural components with consistent density and strength properties
Lamination & Bonding
Multi-layer material bonding, laminate production, and composite material consolidation with uniform pressure application
Product Testing
Materials testing, compression testing, and load verification for quality assurance and product development applications
Technical Specifications & Performance Parameters
| Specification | Range / Capability | Notes |
|---|---|---|
| Press Capacity | 5 Tons to 5000 Tons | Custom configurations available for specific tonnage requirements |
| Stroke Length | 50mm to 1500mm | Custom stroke lengths engineered for specific applications |
| Work Table Size | Custom dimensions available | Engineered for optimal tooling and part accommodation |
| Operating Pressure | Up to 350 bar | Servo systems maintain ±1% pressure accuracy |
| Speed Control | Variable speed with approach/work/return profiles | Programmable speed profiles for optimized cycle times |
| Force Accuracy | ±1% of full scale | Closed-loop load cell feedback ensures precision |
| Pump Displacement | 5cc to 500cc per revolution | Matched to tonnage and speed requirements |
| Motor Power | 0.75 kW to 45 kW | Energy-efficient systems with load-sensing controls |
| Cycle Time | 2 to 120 seconds | Depends on tonnage, stroke length, and process requirements |
| Temperature Control | Automatic thermal management | Integrated cooling systems maintain optimal operating temperature |
Quality Assurance & Performance Verification
We maintain rigorous quality standards throughout the design, manufacturing, and commissioning of every hydraulic press system:
- Pressure Testing: All hydraulic systems undergo pressure testing at 125% rated pressure to verify system integrity and component reliability
- Performance Certification: Each machine includes comprehensive performance curves, load verification, and baseline efficiency measurements
- Cycle Testing: Validation testing of thousands of cycles to confirm consistent performance and identify any potential issues
- Load Cell Calibration: Precision load cells calibrated to national standards (ISO 6954) ensuring accurate force measurement
- Safety System Verification: Dual-channel safety systems tested to SIL 2 standards, emergency stops verified, and interlocks tested
- Dimensional Accuracy: Machine geometry verified using precision coordinate measuring equipment to ensure frame parallelism and alignment
- Documentation Package: Complete technical documentation including pressure-displacement curves, thermal response data, and maintenance schedules
Our Hydraulic Press Machine Models & Capacities
We offer a diverse range of hydraulic press machines with various tonnages to suit your specific industrial requirements. Each model is engineered for maximum efficiency and durability.

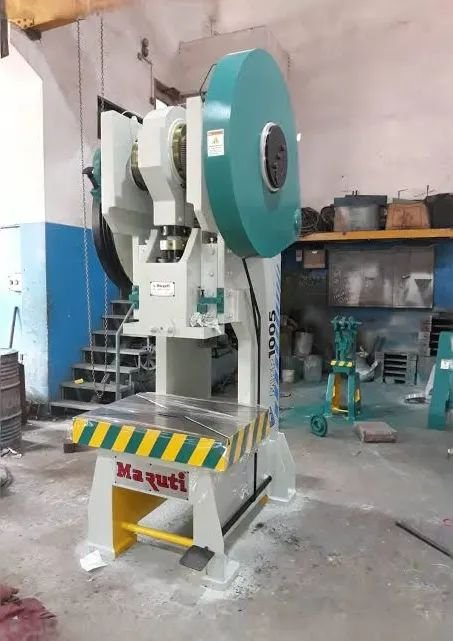

100 TN Capacity

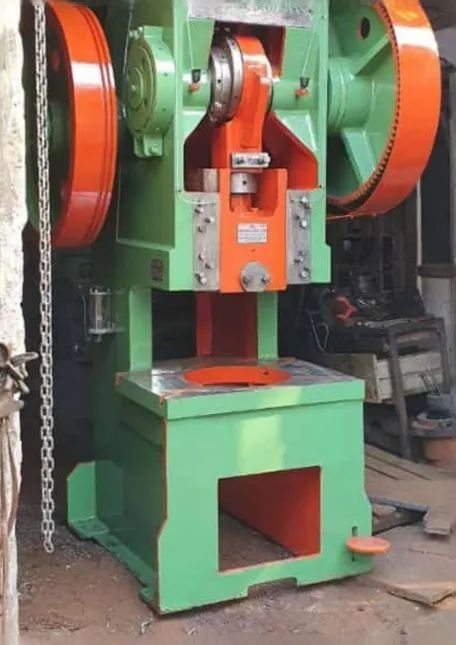

80 TN Capacity

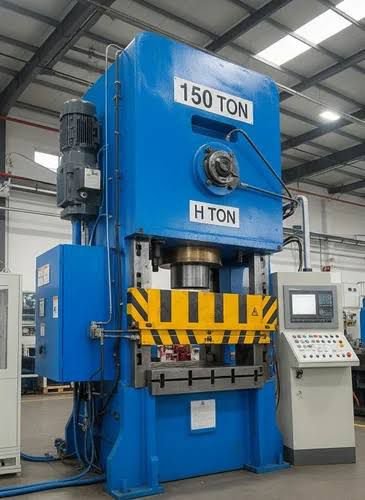

150 TN Capacity

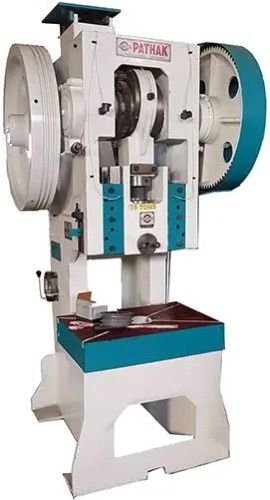

75 TN Capacity

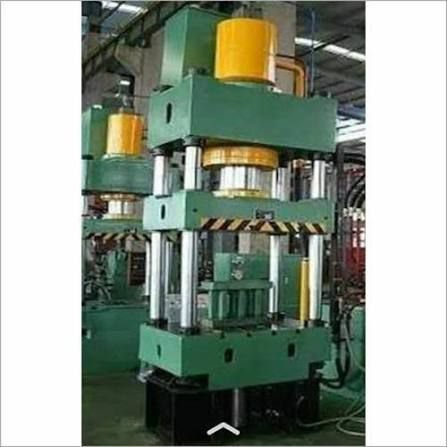

250 TN Capacity

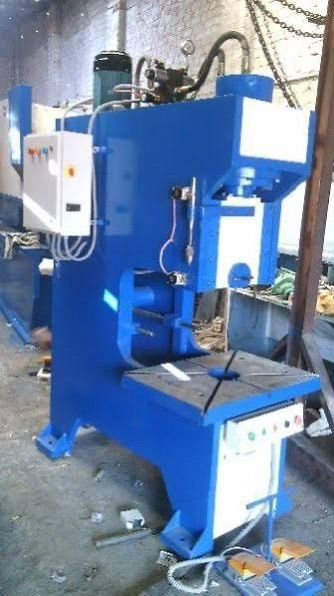

120 TN Capacity

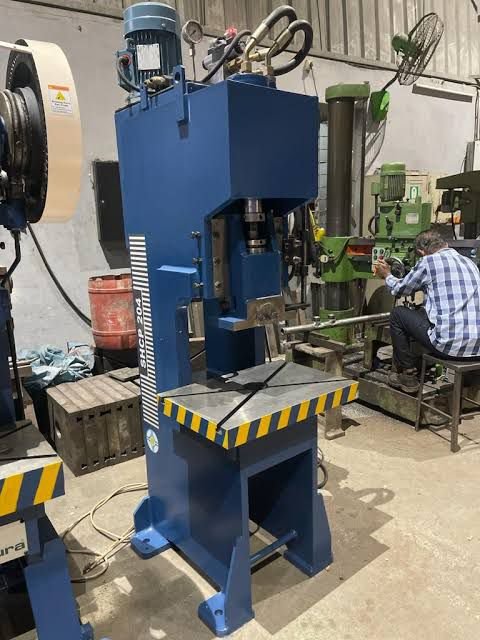

20 TN Capacity

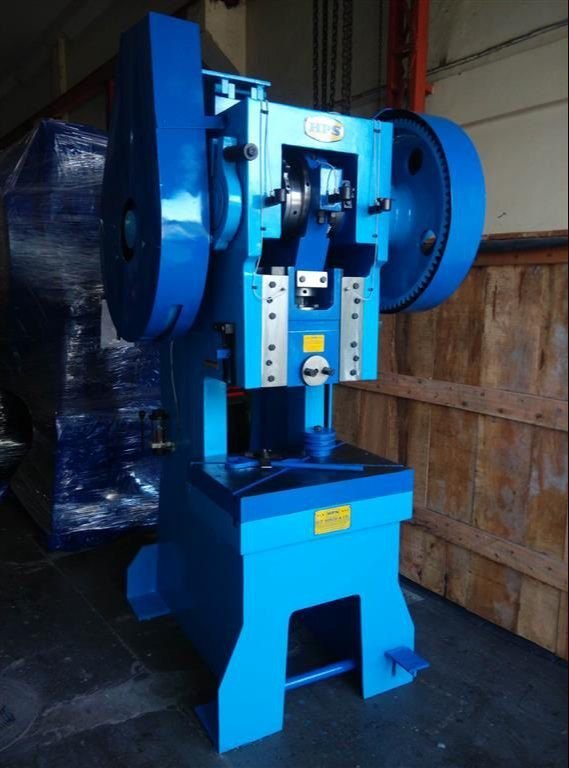

30 TN Capacity

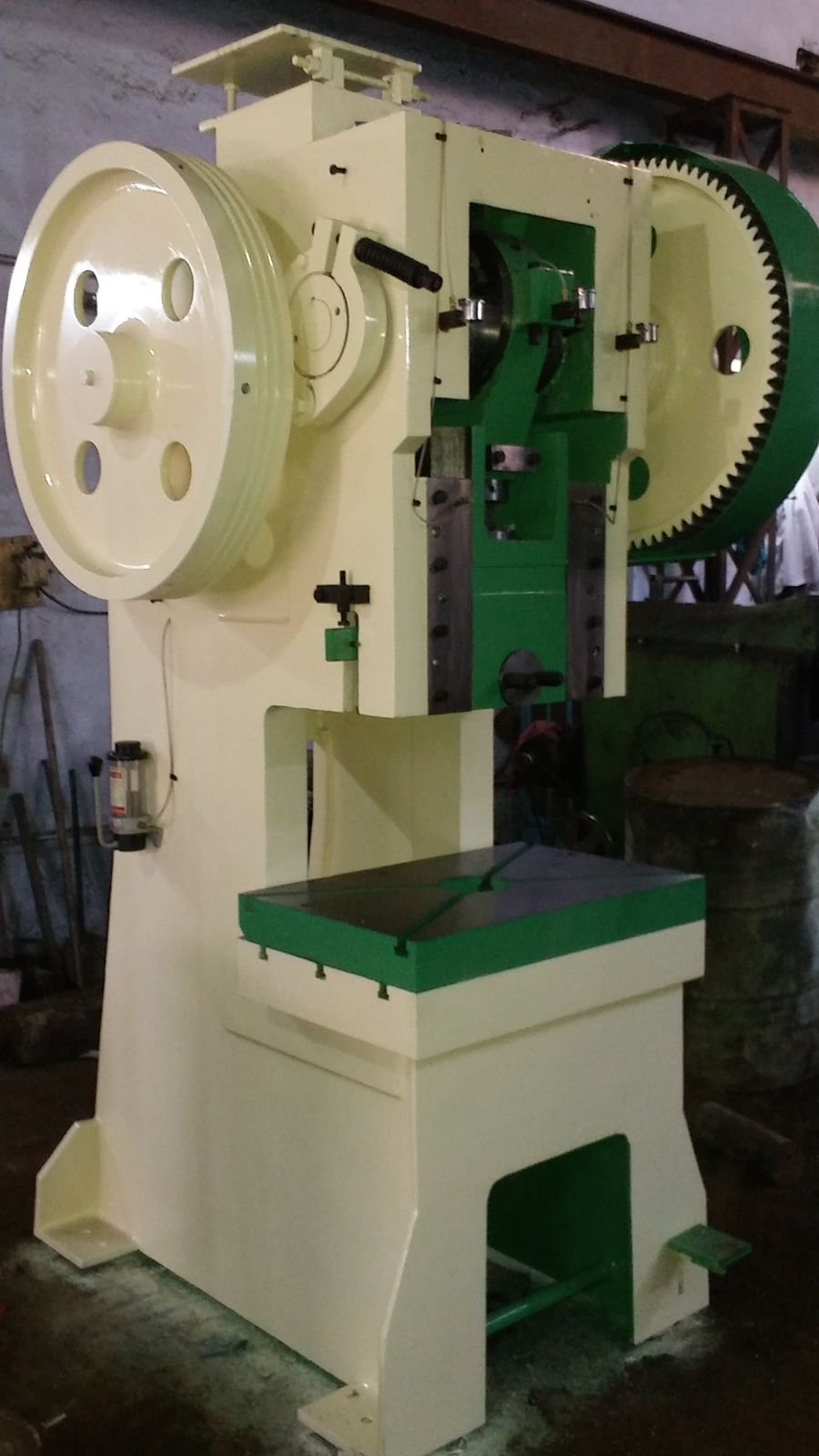

50 TN Capacity
